Stanley 601Joining and cladding electrode for manganese steel that can be flame cut
 |
|
Overview |
|
Specifications |
|
Email to a Friend |
|
Joining and cladding electrode for manganese steel that can be flame cut
- Spray transfer allows for smooth uniform overlays.
- Work hardens easily in service.
- Rare alloy that can be flame cut.
- Also available as a special tubular MIG wire as product
code Stanley 601 MIG
|
|
Overview |
|
Specifications |
|
Email to a Friend |
|
APPLICATIONS:

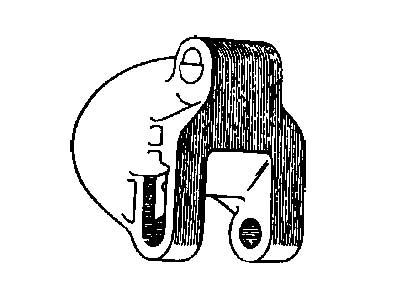

For repair of rail equipment and construction equipment manufactured of manganese steel.
MICROSTRUCTURE:
In the as deposited condition the microstructure consists of a soft manganese alloy austenite which rapidly work hardens under impact loading.
FLUX COLOR: Dark Grey
TYPICAL MECHANICAL PROPERTIES:
Undiluted Weld Metal
Tensile Strength
E l o n g a t i o n
H a r d n e s s
Work Hardness |
Maximum Value Up to:
116,000 PSI (800 N/mm2)
3 8%
Brinell 170-220, Rockwell B87-96
Vickers 180-2305
Brinell 380-550, Rockwell C41-54
Vickers 400-580 |
RECOMMENDED CURRENT: DC Reverse (+) or AC
RECOMMENDED AMPERAGE SETTINGS:
| Diameter (mm) |
1/8(3.25) |
5/32 (4.0) |
3/16 (5.0) |
| Minimum Amperage |
90 |
125 |
160 |
| Maximum Amperage |
125 |
170 |
225 |
WELDING POSITIONS: Flat, Vertical up, Horizontal, Overhead
DEPOSITION RATES:
Diameter
(mm) |
Length
(mm) |
Weldmetal/
Electrode |
Electrodes per lb
(kg) of Weldmetal |
Arc Time of
Deposition
min/lb (kg) |
Amperage
Setting |
Recovery
Rate |
| 1/8 (3.25) |
14" (350) |
.94oz (26g) |
17 (38) |
24 (53) |
110 |
120% |
| 5/32 (4.0) |
14" (350) |
1.45oz (41g) |
11 (24) |
19 (42) |
150 |
120% |
| 3/16 (5.0) |
14" (350) |
2.3oz (64g) |
7 (16) |
13 (29) |
195 |
120% |
WELDING TECHNIQUES:
Clean metal of oils and fatigued sections. Most importantly, do not allow weld interpass temperature to exceed 500oF (260oC).
ELECTRODE PACKAGING & DIMENSIONS:
| Diameter(mm) |
1/8 (3.25) |
5/32 (4.0) |
3/16 (5.0) |
| Length (mm) |
14" (350) |
14" (350) |
14" (350) |
| Electrodes / lb |
12 |
8 |
6 |
| Electrodes / kg |
26 |
18 |
13 |
|
|
