Stanley 609Fir abrasion resistance and moderate impact resistance
 |
|
Overview |
|
Specifications |
|
Email to a Friend |
|
For abrasion resistance and moderate impact resistance
- Basic coated SMAW electrode for hardsurfacing.
- Good for severe abrasion and moderate impact resistance.
- Suitable up to 500o C.
- 120% Recovery.
|
|
Overview |
|
Specifications |
|
Email to a Friend |
|
APPLICATIONS:

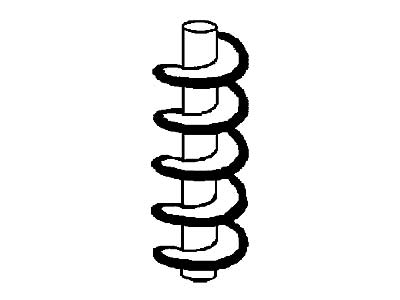

For conveyor screws, mixer blades, pump and crusher parts operation in sand, clay, cement, and coal.
FLUX COLOR: Grey
TYPICAL MECHANICAL PROPERTIES:
Undiluted Weld Metal
S t r ucture
H a r d n e s s
Wear Coefficient
M a c h i n a b i l i t y
|
Maximum Value Up to:
Martensitic cast iron
1 layer 59 HRc
2 layers 61 HRc
3 layers 65 HRc
4 layers 67 HRc
2% (SiO2 as abrasive)
Grinding only |
RECOMMENDED CURRENT: DC Straight (-), AC
RECOMMENDED AMPERAGE SETTINGS:
| Diameter (mm) |
1/8(3.25) |
5/32 (4.0) |
3/16 (5.0) |
| Minimum Amperage |
85 |
115 |
150 |
| Maximum Amperage |
120 |
150 |
190 |
WELDING POSITIONS: Flat, Horizontal, Half up
DEPOSITION RATES:
Diameter
(mm) |
Length
(mm) |
Electrodes per lb
(kg) of Weldmetal |
Arc Time of
Deposition
min/lb (kg) |
| 1/8 (3.25) |
14" (350) |
19 (43) |
41 (90) |
| 5/32 (4.0) |
14" (350) |
12 (27) |
27 (60) |
| 3/16 (5.0) |
14" (350) |
8 (18) |
19(42) |
WELDING TECHNIQUES:
Select the minimum required amperage and utilize a medium arc gap. For smooth flat welds use a 3 x weave. There is minimal slag which can be overwelded without prior removal. Only 2 passes are required for developement of the full benefits of this alloy. Cross crack stress relieving is normal. |
|
