Stanley 610All position shock and abrasion resistant electrode
 |
|
Overview |
|
Specifications |
|
Email to a Friend |
|
All position shock and abrasion resistant electrode
- Excellent for overlaying in vertical and horizontal positions.
- Unusual ability to resist both shock and abrasion.
- Up to 10 pass build-ups without weld cracking.
- Welds pass over pass without chipping slag.
|
|
Overview |
|
Specifications |
|
Email to a Friend |
|
APPLICATIONS:

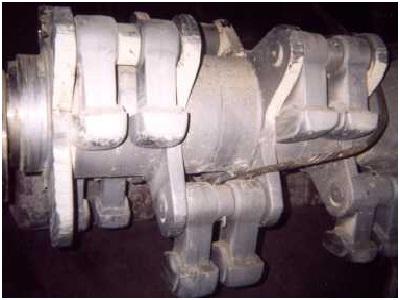

Excellent for restoring worn hammers and assorted parts in rock
crushing equipment.
MICROSTRUCTURE:
Martensite with some carbides.
FLUX COLOR: Grey
TYPICAL MECHANICAL PROPERTIES:
Undiluted Weld Metal
H a r d n e s s
Wear Co-efficient:
|
Maximum Value Up to:
Rockwell C 56-57
2.2% |
RECOMMENDED CURRENT: DC Reverse (+), or AC
RECOMMENDED AMPERAGE SETTINGS:
| Diameter (mm) |
3/32 (2.5) |
1/8(3.25) |
5/32 (4.0) |
3/16 (5.0) |
| Minimum Amperage |
80 |
100 |
140 |
180 |
| Maximum Amperage |
100 |
140 |
180 |
230 |
WELDING POSITIONS: Flat, Horizontal, Vertical up
DEPOSITION RATES:
Diameter
(mm) |
Length
(mm) |
Weldmetal/
Electrode |
Electrodes per lb
(kg) of Weldmetal |
Arc Time of
Deposition
min/lb (kg) |
Amperage
Setting |
| 3/32(2.5) |
14" (350) |
.39oz (11g) |
41 (90) |
36 (79) |
90 |
| 1/8 (3.25) |
18" (450) |
.77oz (22g) |
20 (44) |
21 (47) |
120 |
| 5/32 (4.0) |
18" (450) |
1.33oz (39g) |
12 (26) |
18 (39) |
160 |
| 3/16 (5.0) |
18" (450) |
2.34oz (65g) |
7 (15) |
13 (28) |
205 |
WELDING TECHNIQUES:
Weld in a stringer or 3 x weave fashion. When welding vertically use the "whip" technique.
ELECTRODE PACKAGING & DIMENSIONS:
| Diameter(mm) |
3/32(2.5) |
1/8 (3.25) |
5/32 (4.0) |
3/16 (5.0) |
| Length (mm) |
14"(350) |
18" (450) |
18" (450) |
18" (450) |
| Electrodes / lb |
21 |
9 |
6 |
5 |
| Electrodes / kg |
46 |
21 |
14 |
11 |
|
|
