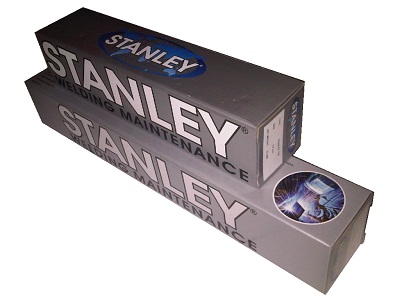

Stanley 979NICKEL COPPER JOINING ELECTRODE
|
Overview |
|
Specifications |
|
Email to a Friend |
|
• Excellent for repairs in chlorine environments
• Used extensively in salt water and marine applications
• Works well as both a joining and cladding electrode |
|
Overview |
|
Specifications |
|
Email to a Friend |
|
TYPICAL MECHANICAL PROPERTIES :
Undiluted Weld Metal Maximum Value Up to:
Tensile Strength 80,000 Psi (540 MPa)
Yield Strength 56,000 Psi (380 MPa)
Elongation 36%
RECOMMENDED CURRENT :
DC Reverse (+)
WELDING POSITIONS :
Flat, Horizontal, Vertical up, Overhead.
WELDING TECHNIQUES :
Use only dry electrodes. Redrying of the electrodes 2h at 250ºC. Use stringer beads on clean joints and exempt of grease, oil or different oxides. Weld with a very short arc and hold the electrode 10-20º inclined in direction of travel. |
|
